Analog I/O

Home > MPLAB Device Blocks for Simulink > Block Reference > Analog I/O

Overview

Analog I/O blocks provide precise voltage generation, signal conditioning, and threshold detection capabilities for motor control, power conversion, and instrumentation applications. The MPLAB Blockset offers DAC outputs for waveform generation, high-speed comparators for fault protection, operational amplifiers for signal conditioning, and programmable gain amplifiers for sensor interfacing.

Available Analog I/O Blocks

Block Selection Guide

By Application

Application	Recommended Block	Why?
Voltage Reference	DAC	Precision DC voltage for biasing or reference
Waveform Generation	DAC	Audio, function generator, test signals
Overcurrent Protection	High-Speed Comparator	Fast fault detection with PWM shutdown
Peak Current Mode Control	Comparator with Slope	SMPS regulation with slope compensation
Sensor Buffering	Op-Amp	Impedance matching and signal conditioning
Variable Gain Sensing	PGA	Dynamic amplification for wide-range sensors
DC Bus Monitoring	High-Speed Comparator	Overvoltage/undervoltage detection

By Device Family

Device Family	DAC	High-Speed Comparator	Comparator w/Slope	Op-Amp	PGA
dsPIC30F	❌	❌	❌	❌	❌
dsPIC33F	❌	❌	❌	❌	❌
dsPIC33E	❌	✅ (EP/EV)	✅ (EP/EV)	⚠️ (selected)	❌
dsPIC33C	❌	✅ (CH/CK)	✅ (CH/CK)	✅	✅
PIC32MK	❌	❌	❌	✅	✅
SAM E5x/E7x/C2x	✅	❌	❌	❌	⚠️ (selected)

Legend: ✅ Full Support | ⚠️ Selected Devices | ❌ Not Available

Analog Signal Chain Integration

Typical Motor Control Signal Chain

Sensor → PGA/Op-Amp → ADC (for feedback)
            ↓
      Comparator (for protection)
            ↓
    PWM Fault Input (hardware shutdown)

Configuration Strategy:

Current Sensing: Op-Amp or PGA amplifies shunt voltage → ADC for control loop
Overcurrent Protection: Comparator monitors amplified signal → PWM fault for immediate shutdown
Voltage Reference: DAC provides stable reference for comparator threshold

Typical Instrumentation Chain

Sensor → PGA (variable gain) → ADC (measurement)
         ↓
  Op-Amp (buffering/filtering)

Configuration Strategy:

Signal Conditioning: Op-Amp buffers high-impedance sensor
Range Adaptation: PGA adjusts gain based on signal amplitude
Measurement: ADC samples conditioned signal with optimal resolution

Comparator-PWM Fault Integration

Critical for motor control and power conversion - Comparators can trigger PWM fault events for immediate hardware shutdown without CPU intervention.

How It Works:

High-speed comparators monitor critical signals (current, voltage) and directly control PWM outputs through hardware fault inputs. When the comparator detects an over-threshold condition, it forces PWM outputs to a safe state within nanoseconds, protecting hardware from damage.

Fault Response Strategies:

Fault Trigger	Comparator Configuration	PWM Fault Action	Recovery
Overcurrent (cycle-by-cycle)	Fast response, 10mV hysteresis	Force outputs LOW during fault	Automatic recovery next PWM period
Overvoltage (latched)	15mV hysteresis, filtered	Latch outputs OFF	Manual reset required
Peak current limit	Slope compensation enabled	Reduce duty cycle	Proportional reduction

Configuration Best Practices:

Use hysteresis to prevent chattering during transients
Configure PWM blanking window to ignore switching noise
Verify comparator response time meets protection requirements
Test fault recovery behavior under real operating conditions

DAC Output Applications

Voltage Reference Generation

DACs provide stable DC voltage references for:

Comparator threshold setting
ADC biasing (single-ended to differential conversion)
Voltage-controlled circuits
Test equipment calibration

Accuracy Considerations:

12-bit DAC: 0.8 mV step size @ 3.3V reference
10-bit DAC: 3.2 mV step size @ 3.3V reference
Use external precision reference for critical applications
Account for output impedance when driving low-impedance loads

Waveform Generation

DACs enable arbitrary waveform synthesis for:

Audio signal generation (speech, tones, music)
Function generator applications (sine, triangle, sawtooth)
Motor commutation signals (BLDC trapezoidal drive)
Test stimulus generation

Performance Limits:

SAM E7x: 1 MSPS maximum update rate
SAM C2x: 350 kSPS maximum update rate
Use DMA for high-speed continuous waveforms
Add external low-pass filter for high-quality audio

Op-Amp and PGA Signal Conditioning

Sensor Interfacing Best Practices

When to Use Op-Amp:

High-impedance sensor buffering (piezoelectric, pH probes)
Active filtering (low-pass, high-pass, band-pass)
Current-to-voltage conversion (photodiode amplification)
Level shifting for single-ended to differential conversion

When to Use PGA:

Sensors with wide dynamic range (load cells, pressure sensors)
Multi-range measurement systems
Automatic gain control for varying signal amplitudes
Optimal ADC resolution across different operating conditions

Configuration Tips:

Op-Amp unity gain: Use for simple buffering without amplification
PGA gain selection: Start with lowest gain, increase if ADC resolution insufficient
Differential mode: Use for common-mode noise rejection
Output impedance: Ensure compatible with ADC input impedance

Device Family Support Summary

Analog Block	dsPIC30F	dsPIC33F	dsPIC33E	dsPIC33C	dsPIC33A	PIC32MK	SAM E5x	SAM E7x	SAM C2x
DAC	❌	❌	❌	❌	❌	❌	✅	✅	✅
High-Speed Comparator	❌	❌	✅ (EP/EV)	✅ (CH/CK)	❌	❌	❌	❌	❌
Comparator w/Slope	❌	❌	✅ (EP/EV)	✅ (CH/CK)	❌	❌	❌	❌	❌
Op-Amp	❌	❌	⚠️ (selected)	✅	❌	✅	❌	❌	❌
PGA	❌	❌	❌	✅	❌	✅	⚠️ (selected)	❌	❌

Legend: ✅ Full Support | ⚠️ Selected Devices | ❌ Not Available

Overview

Available Analog I/O Blocks

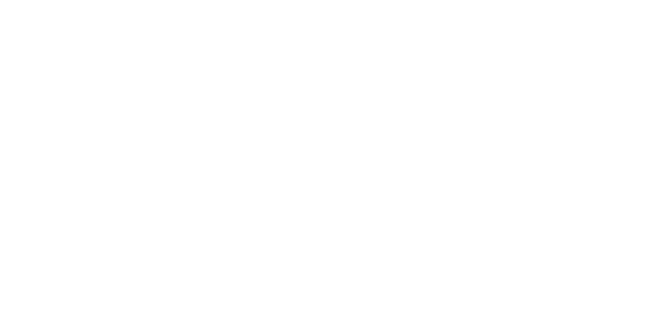

DACC SAMx - Digital-to-Analog Converter for SAM Devices

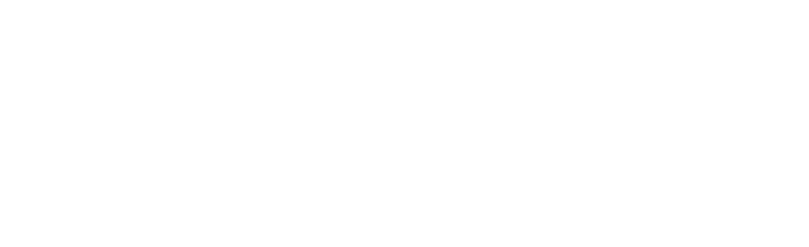

HighSpeed AnalogComparator - Fast Threshold Detection

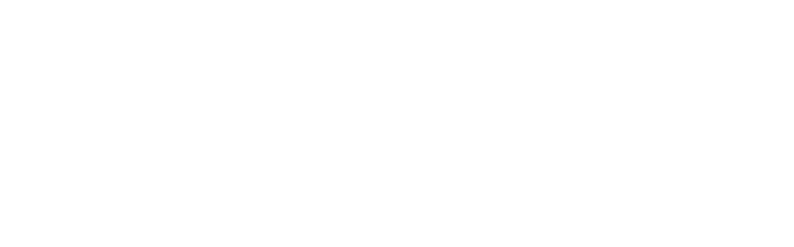

HighSpeed AnalogComparator wSlope - Comparator with Slope Compensation

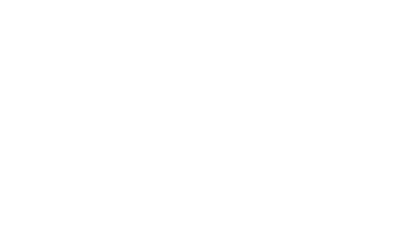

OP AMP - Operational Amplifier Configuration

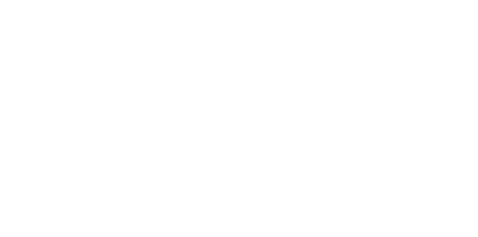

PGA - Programmable Gain Amplifier
