PWM HS FEP

dsPIC33A AK/AKV dsPIC33C selected

☀️ Light

This advanced PWM peripheral is specifically designed for precision motor control, high-frequency power conversion, and applications demanding superior timing accuracy and reduced total harmonic distortion (THD).

Block Inputs/Outputs

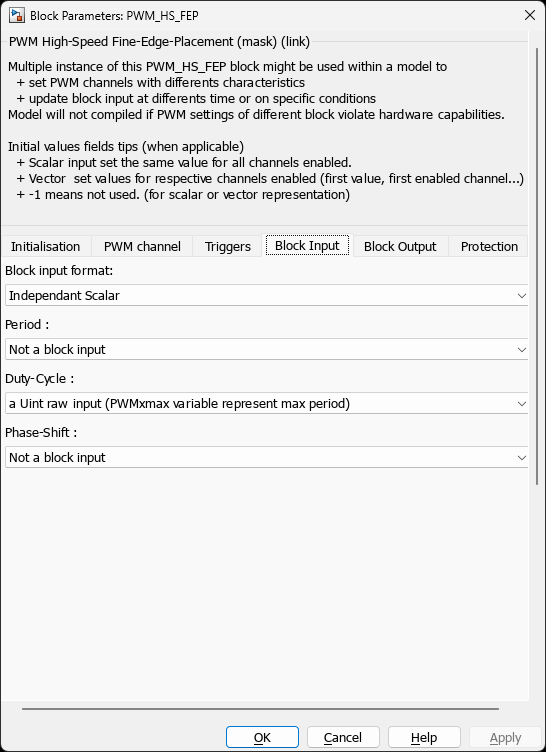

Variable Block Inputs

All block inputs can be individually enabled or disabled in the block configuration dialog. When disabled, the corresponding value set at initialization time remains constant.

Available block inputs:

• Period — PWM period (time duration of one complete PWM cycle)
• DutyCycle 1..N — Pulse width for each enabled channel. This input specifies the on-time (pulse width) as a time value, not a ratio.
• PhaseShift 1..N — Time delay applied to the pulse within the PWM period (shifts the pulse position relative to the period start)

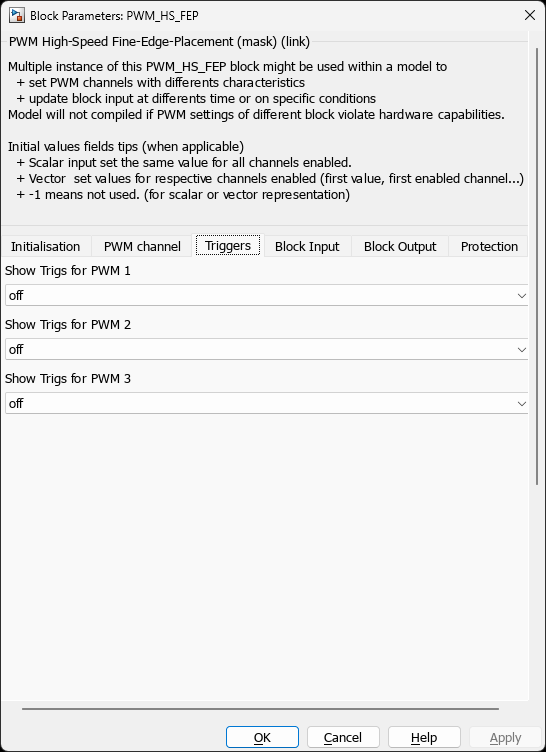

• SEVTCMP — Special Event Compare trigger timing (sets when the ADC trigger fires within the PWM period)
• TRIGx 1..N — Additional trigger compare values for multi-point ADC triggering
• DeadTimeH/L 1..N — Dead-time values for high-side and low-side transitions

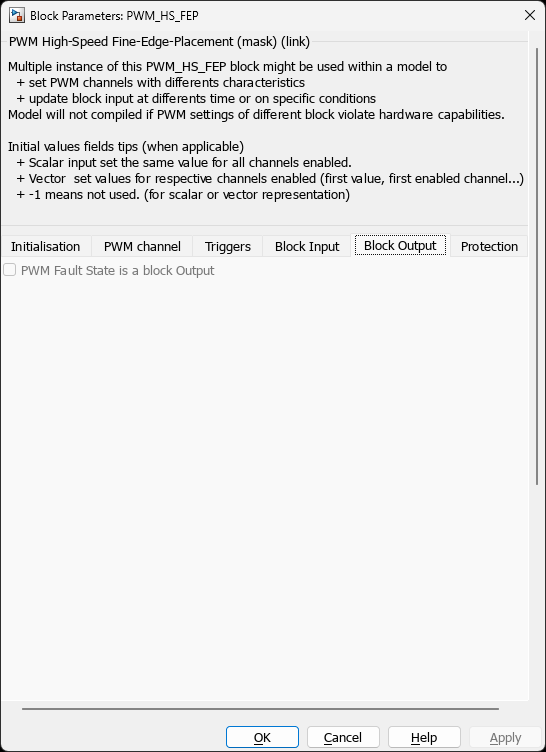

Variable Block Outputs

• Trigger 1..N (boolean) - Trigger output signals
• Status (uint16) - PWM status information (if enabled)

Scaling

The block supports 4 input datatype representations:

⚠️ Important: The block performs no range checking on inputs. Users must clamp values before the block input (e.g., using a Saturation block) to prevent overflow, regardless of datatype.

Float Inputs (3 options)

Selecting a float datatype accepts either single or double precision floating-point values. dsPIC33A devices have hardware FPU—float inputs are processed efficiently. dsPIC33C uses software emulation—consider uint raw inputs for time-critical loops.

• Float [0 1] (Unipolar): Normalized control where 0.0 represents 0% duty cycle and 1.0 represents 100% duty cycle. The block handles all scaling internally.
• Float [-1 1] (Bipolar): Normalized control where -1.0 and +1.0 represent the duty cycle extremes. Suitable for H-bridge and bidirectional control where the sign indicates direction.
• Float (s) (Physical): Specify duty cycle or period directly in seconds. The block converts to register values automatically.

Uint Raw Input (1 option)

• Uint raw: Integer values transfer directly to peripheral registers with no runtime computation—maximum efficiency.

The block creates workspace variables for user scaling:

Fixed Period (period input disabled):

$$\text{DutyCycle}_\text{raw} = \text{DutyCycle}_\text{normalized} \times \text{PWMxmax}$$

DutyCycle_raw = DutyCycle_normalized × PWMxmax

Where DutyCycle_normalized is in the range [0, 1] relative to the fixed Max Period.

Variable Period (period input enabled):

When the period is dynamically controlled via block input, both period and duty cycle use the same scaling:

$$\text{Period}_\text{raw} = \text{Period}_\text{normalized} \times \text{PWMxmax}$$

Period_raw = Period_normalized × PWMxmax

$$\text{DutyCycle}_\text{raw} = \text{DutyCycle}_\text{normalized} \times \text{Period}_\text{raw}$$

DutyCycle_raw = DutyCycle_normalized × Period_raw

⚠️ Constraints:

• Period input must always be < PWMxmax (Max Period in GUI)
• Duty cycle normalizes to the actual period input, not PWMxmax
• If ADC triggers from PWM events and drives the scheduler, changing period alters the control loop sample time

Center-Aligned vs Edge-Aligned

Center-Aligned Mode: The PWMxmax workspace variable is halved at configuration time because the timer counts both up and down. This applies to all input types (Uint raw, Float).

No runtime division: Since PWMxmax is already halved, the block passes integer inputs directly to registers without any runtime shift operation. Users simply scale their values to the halved PWMxmax.

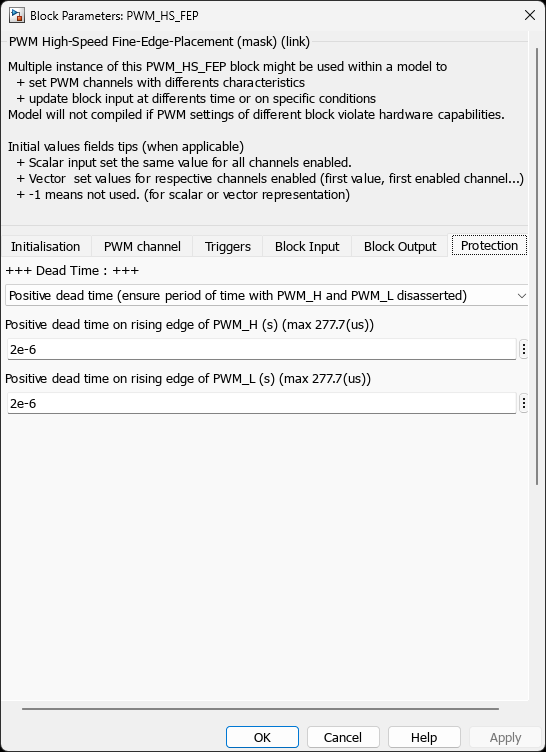

Dead Time

• GUI configuration: Specify in seconds (e.g., 1e-6 for 1 µs)

• Integer block input: Dead time uses a different scaling base (full period, not halved).

  ⚠️ In center-aligned mode, multiply PWMxmax by 2 for dead time scaling:

$$\text{DeadTime}_\text{raw} = \frac{\text{DeadTime}_s \times 2 \times \text{PWMxmax}}{\text{MaxPeriod}_s}$$

DeadTime_raw = (DeadTime_s × 2 × PWMxmax) / MaxPeriod_s

• Note: Dead time scaling is identical in center-aligned and edge-aligned modes—the factor of 2 compensates for the halved PWMxmax

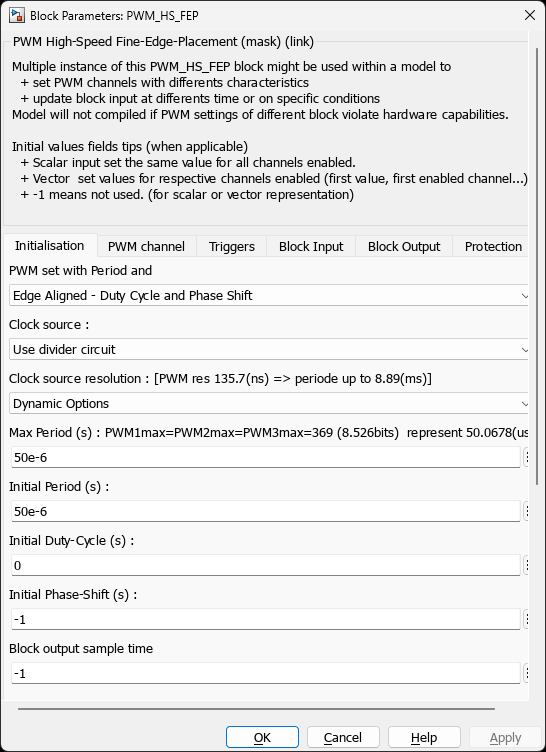

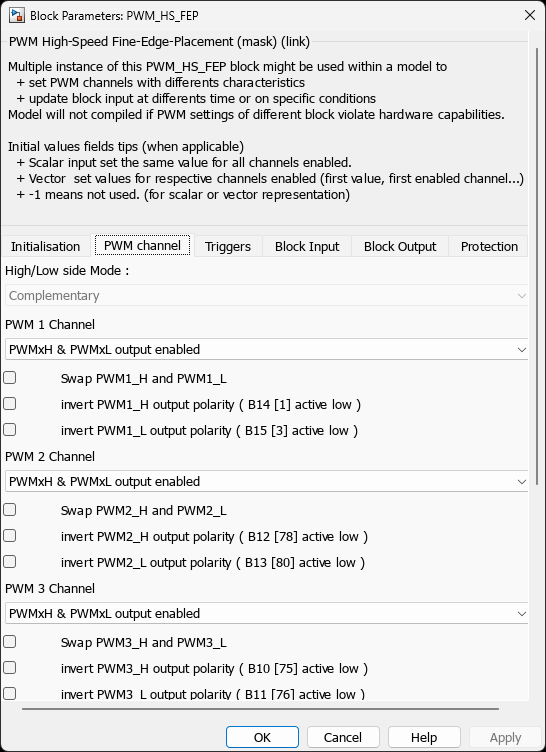

Block Parameters

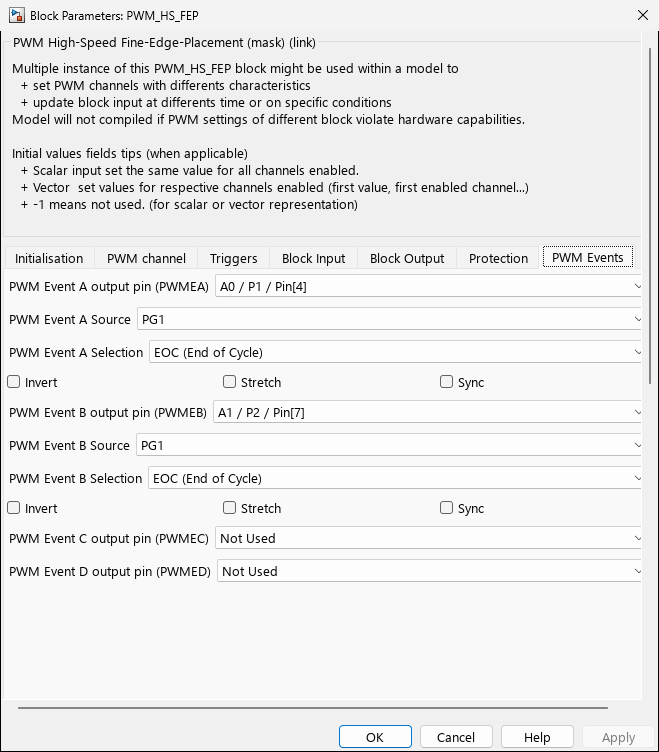

Additional Features

Key Features

High-Resolution Mode Critical Requirements

⚠️ MANDATORY High-Resolution Mode Constraints

Reference: DS70005320 - dsPIC33/PIC24 Family Reference Manual - High-Resolution PWM with Fine Edge Placement , Section 4.1.3 - “High-Resolution PWM with Fine Edge Placement”

Primary Restriction (ALL Families):

“High-Resolution mode CANNOT be used with frequency scaling or the clock divider.”

Required Configuration for HiRES Mode (HREN=1):

• CLKSEL[1:0] bits (PGxCONL[4:3]) MUST be set to '01'

• This selects pwm_master_clk DIRECTLY (no divider/scaling)

• pwm_master_clk frequency requirements:

• dsPIC33C: MUST be 500 MHz for High-Resolution mode

• dsPIC33A: Refer to device datasheet timing requirements

• STX32: 800 MHz typical

• STX21: 400 MHz typical

CLKSEL Bit Mapping and HiRES Compatibility

Additional High-Resolution Constraints

PWM-ADC Synchronization

Proper synchronization between PWM generation and ADC sampling is critical for motor control and power conversion applications. The PWM module can trigger ADC conversions at precise timing points, ensuring current measurements occur when switching noise is minimal.

Scheduler Trigger Options

The MCHP Blockset supports multiple strategies for triggering the control algorithm execution, each with specific advantages:

Option 1: Timer-Based Trigger (Baseline)

Configuration:

• Independent timer generates periodic interrupts
• ADC and PWM operate independently
• Control algorithm executes at fixed timer rate

Use Cases:

• Simple periodic control loops without strict timing requirements
• Applications where ADC/PWM timing flexibility is needed
• Testing and debugging (easy to change rates independently)

Limitations:

• No guaranteed synchronization between PWM switching and ADC sampling
• Risk of sampling during PWM transitions (switching noise corruption)
• Separate timer consumes additional hardware resources

Option 2: Timer → ADC → Task (Improved Synchronization)

Configuration:

• Timer triggers ADC conversion start
• ADC end-of-conversion triggers control task execution
• Control algorithm executes immediately when sensor data is ready

Advantages:

• Deterministic latency: Task starts exactly when ADC conversion completes
• Data freshness: Control algorithm uses most recent measurements
• Reduced jitter: Eliminates polling overhead

Use Cases:

• Applications requiring precise timing between measurement and computation
• Multi-rate control systems with independent ADC timing
• Systems where PWM frequency differs from control loop frequency

Option 3: PWM → ADC → Task (Motor Control Standard)

Configuration:

• PWM Special Event Trigger (SEVTCMP) starts ADC conversion
• ADC end-of-conversion triggers control task execution
• Control algorithm calculates new PWM duty cycle for next period

Key Benefits for Motor Control:

• Optimal sampling timing: Sample when PWM low-side FET is ON (minimizes switching noise)
• Synchronized to PWM period: Control rate automatically matches PWM frequency
• Phase current sensing: Sample during current flow through shunt resistor
• Hardware coordination: No software overhead for synchronization

Typical SEVTCMP Timing (Center-Aligned PWM):

% For center-aligned PWM, sample at valley (maximum current flow)
SEVTCMP = 0;  % Trigger at PWM valley

% Alternative: Sample at peak
SEVTCMP = Period;  % Trigger at PWM peak

% For edge-aligned PWM, sample mid-period
SEVTCMP = Period/2;  % Trigger at 50% duty cycle point

Use Cases:

• Field-Oriented Control (FOC): Phase current measurement for Clarke/Park transforms
• BLDC motor control: Commutation with synchronized sensing
• DC-DC converters: Inductor current sensing during ON-time
• Inverter control: Output current monitoring synchronized to switching

Option 4: PWM → Multiple ADC Triggers → Task (Advanced)

Configuration:

• Multiple trigger points within single PWM period
• SEVTCMP + TRIG1/TRIG2 enable sequential ADC conversions
• Different sampling phases for comprehensive measurement
• Control task executes after all conversions complete

Advanced Use Cases:

• 3-Phase motor control: Sample each phase current at different PWM timing

• SEVTCMP: Phase A current (PWM valley)

• TRIG1: Phase B current (25% into period)

• TRIG2: Phase C current (75% into period)

• Dual current sensing: Capture both rising and falling edge currents for average calculation

• Multi-level inverters: Sample at different switching states

• Ripple analysis: Capture peak and valley for DC-link ripple measurement

Configuration Example (3-Phase FOC):

% PWM Configuration:
PWMx_ECAM_ITB = 'Center aligned - Symmetric';
Period = 1/20e3;  % 20 kHz PWM

% Trigger Configuration:
SEVTCMP = 0;              % Trigger ADC1 at PWM valley (Phase A)
TRIG1 = Period/4;         % Trigger ADC2 at 25% (Phase B)
TRIG2 = 3*Period/4;       % Trigger ADC3 at 75% (Phase C)

% ADC Configuration:
% - ADC1 (Channel 0): Phase A current, triggered by SEVTCMP
% - ADC2 (Channel 1): Phase B current, triggered by TRIG1
% - ADC3 (Channel 2): Phase C current, triggered by TRIG2
% - All three conversions complete before control task executes

Synchronization Best Practices

        Always use PWM → ADC → Task for motor control applications
        Set SEVTCMP timing carefully:

                Center-aligned: Sample at valley (SEVTCMP = 0) for maximum current amplitude
                Edge-aligned: Sample mid-period (SEVTCMP = Period/2) to avoid edges


        Account for ADC conversion time: Ensure conversion completes before next PWM event
        Match base sample time: Simulink base time step = PWM period (ensures proper code generation)
        Verify trigger timing: Use Task State block to measure execution timing on oscilloscope

Common Synchronization Issues and Solutions

Implementation in Simulink Model

Step-by-Step Configuration:

• Configure PWM Block:

% In PWM_HS_FEP block dialog:
PWMx_ECAM_ITB = 'Center aligned - Symmetric';
Period = 1/20e3;  % 20 kHz
SEVTCMP_Config = 'Constant';
SEVTCMP_Value = 0;  % Sample at valley

• Configure ADC Block:

% In ADC block dialog:
Trigger_Source = 'PWM Special Event';
PWM_Trigger_Select = 'PWM1 SEVTCMP';  % Match PWM generator
Sample_Time = 'Inherited';  % Triggers set ADC rate

• Set Simulink Solver:

% Configuration Parameters → Solver:
Solver = 'Fixed-step';
Fixed_step_size = 1/20e3;  % Match PWM period
Tasking_mode = 'Multitasking';  % For rate monotonic scheduler

• Verify Timing:
• Add Task State block to monitor control loop execution
• Add MCU Load block to verify CPU utilization < 80%
• Build and test on hardware with oscilloscope

Troubleshooting

HiRES Mode Not Working

Checklist:

• ✅ PWMx_ClockResolution set to "no scaling" (MANDATORY)
• ✅ pwm_master_clk configured correctly (500 MHz for 33C, per datasheet for 33A)
• ✅ Period and duty cycle values meet minimum requirements (0x0080 period, 0x0020 duty)
• ✅ Not using dual PWM + complementary output mode (incompatible with HiRES)

Invalid Clock Configuration Error

Error: “HiRES mode cannot be used with divider or scaling circuit” Solution: Change PWMx_ClockResolution to "no scaling". The divider and scaling circuits are incompatible with High-Resolution mode per DS70005320 - dsPIC33/PIC24 Family Reference Manual - High-Resolution PWM with Fine Edge Placement Section 4.1.3.

Backward Compatibility Warning

Duty Cycle Saturation

Cause: HiRES mode has higher minimum duty cycle than standard mode.

Solution: Ensure duty cycle commands ≥ 0x0020. For very low duty cycles, use standard resolution mode.

Supported Device Families

Related Blocks

• MCHP_PWM_HighSpeed - High-speed PWM for dsPIC33C/CH/CK (older variant)
• MCHP_PWM - Standard PWM for dsPIC30F/33F/33E
• MCHP_MCPWM - Motor Control PWM (advanced features)
• MCHP_ADC - ADC with PWM trigger synchronization
• MCHP_Master - Master block for clock configuration

See Also

Datasheets

• DS70005320 - dsPIC33/PIC24 Family Reference Manual - High-Resolution PWM with Fine Edge Placement
• DS70005591 - dsPIC33AK512MPS512 Family Datasheet
• DS70005539 - dsPIC33AK128MC106 Family Datasheet
• DS70005349 - dsPIC33CK256MP508 Family Datasheet
