System Configuration

☀️ Light

Overview

System Configuration blocks provide essential initialization, clock configuration, scheduler control, and performance monitoring for embedded applications. The MPLAB Blockset includes the Master block (required in every model), scheduler configuration, compiler optimization controls, and system monitoring blocks for robust embedded system development.

Core System Blocks

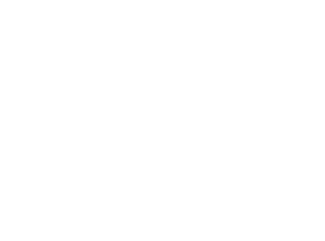

Master - System Initialization and Clock Configuration

All Families

Required system initialization block that configures device, clock, and global settings. - **Device Selection**: Choose target microcontroller

Scheduler Configuration Blocks

Scheduler Options - Multitasking Scheduler Configuration

All Families

Configure Rate Monotonic Scheduler for multi-rate task execution with preemption. - **Rate Monotonic Scheduling**: Higher rate = higher priority

Tasks State - Task Execution Status

All Families

Monitor task execution state and detect scheduling anomalies. - **Task Status Output**: Currently executing task ID

Performance Monitoring Blocks

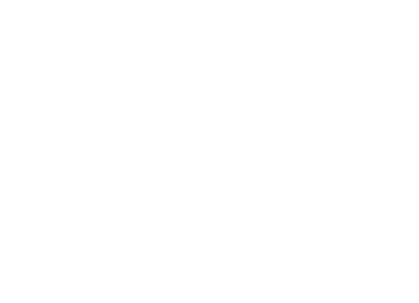

MCU Load - CPU Utilization Measurement

All Families

Real-time CPU load monitoring using timer-based measurement. - **CPU Usage Percentage**: 0-100% real-time measurement

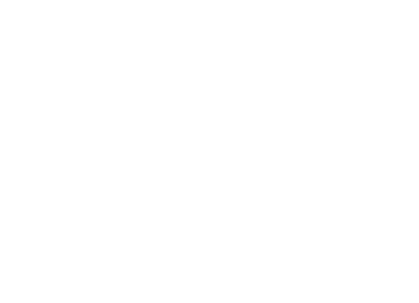

MCU Overload - Task Overrun Detection

All Families

Detect task deadline violations and timing constraint failures. - **Overrun Flag**: Boolean output when task exceeds deadline

Compiler Configuration Blocks

Compiler Options - Compiler Optimization Control

All Families

Configure compiler optimization levels and code generation options. - **Optimization Levels**: -O0 (debug), -O1, -O2, -O3 (max speed), -Os (size)

Idle Task - Background Task Configuration

All Families

Configure low-priority idle task that executes when no other tasks are ready. - **Background Execution**: Runs when CPU idle

Interrupt - Custom Interrupt Service Routine

All Families

Create custom interrupt handlers for external events or peripheral interrupts. - **Interrupt Vector Selection**: Choose specific interrupt

Block Selection Guide

Essential Blocks (Required)

Performance Monitoring (Recommended)

Scheduler Behavior and Best Practices

Rate Monotonic Scheduling

Priority Assignment:

• Highest Rate = Highest Priority
• Example: 10 kHz task preempts 1 kHz task

Preemption:

• ✅ Enabled: Higher priority tasks interrupt lower priority
• ❌ Disabled: Tasks run to completion (simpler, less overhead)

When to Use Preemption:

• ✅ Motor control (fast current loop must preempt slower loops)
• ✅ Safety-critical tasks with tight deadlines
• ❌ Simple applications (CPU overhead not worth benefit)
• ❌ Legacy code with non-reentrant functions

CPU Load Guidelines

Troubleshooting Common Issues

Task Overruns

Symptoms: MCU_Overload flag set, erratic behavior

• Check: CPU load > 100%
• Fix 1: Reduce algorithm complexity
• Fix 2: Increase sample period (lower task rate)
• Fix 3: Enable compiler optimization (-O2 or -O3)
• Fix 4: Move slow code to lower-priority task

Scheduler Not Working

Symptoms: Only one task executes, others ignored

• Check: Multiple sample rates defined in Simulink model
• Check: Scheduler_Options block present
• Check: Fixed-step solver enabled (not variable-step)
• Check: Tasks_State output shows task switching

Clock Configuration Errors

Symptoms: Timing incorrect, UART baud rate wrong

• Check: Master block clock settings match hardware oscillator
• Check: PLL configuration correct for target frequency
• Check: Verify actual instruction cycle with oscilloscope

Device Family Support Summary

Legend: ✅ Full Support

All system configuration blocks support all device families. Device-specific details are automatically handled by each block based on the selected target MCU.

See Also

Related Block Categories:

• PWM Blocks - For PWM-triggered scheduler
• Timer Blocks - For timer-based scheduler tick
• Utility Blocks - For additional system functions

Recommended Reading:

• Rate Monotonic Scheduling theory
• Real-time system design patterns
• Compiler optimization trade-offs

Example Projects:

• Motor Control Examples - Multi-rate FOC with preemption
• Board Templates - Pre-configured system blocks

💡 Quick Setup Guide:

1. Every model needs: MCHP_Master block (required)
2. Multi-rate models need: MCHP_Scheduler_Options
3. Performance monitoring: MCHP_MCU_Load + MCHP_MCU_Overload
4. Optimization: MCHP_Compiler_Options for critical code
