Scheduler & Multitasking

☀️ Light

The MPLAB Device Blocks for Simulink includes a sophisticated scheduler that enables efficient execution of multi-rate Simulink models on resource-constrained microcontrollers. This guide explains the scheduler concepts, configuration options, and best practices for optimal performance.

Single-Rate vs Multi-Rate Models

Simulink models can be designed with blocks executing at the same rate (single-rate) or at different rates (multi-rate):

Single-Tasking vs Multi-Tasking Implementation

For multi-rate models, the MPLAB Device Blocks toolbox offers two execution modes:

Single-Tasking Mode

In single-tasking mode, all tasks execute sequentially in a single loop. Fast tasks and slow tasks are called in order without preemption.

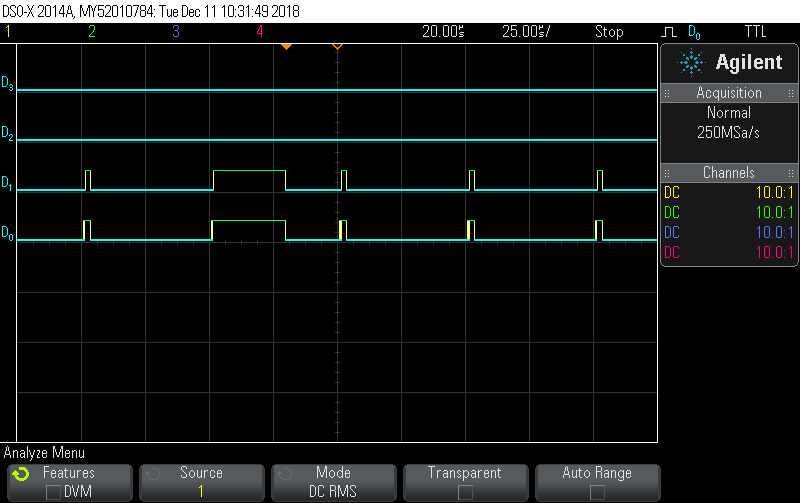

Figure 1: Single-tasking execution on a 70 MIPS dsPIC33. Tasks execute sequentially: fast 1ms task, then slow 10ms task when scheduled. No preemption occurs.

Advantages:

• Simple and predictable execution
• No priority management needed
• Easy to debug (linear execution flow)
• No context switching overhead

Disadvantages:

• CPU overload if total execution time exceeds base rate period
• Slow tasks delay fast tasks
• Not suitable for slow microcontrollers with tight timing requirements

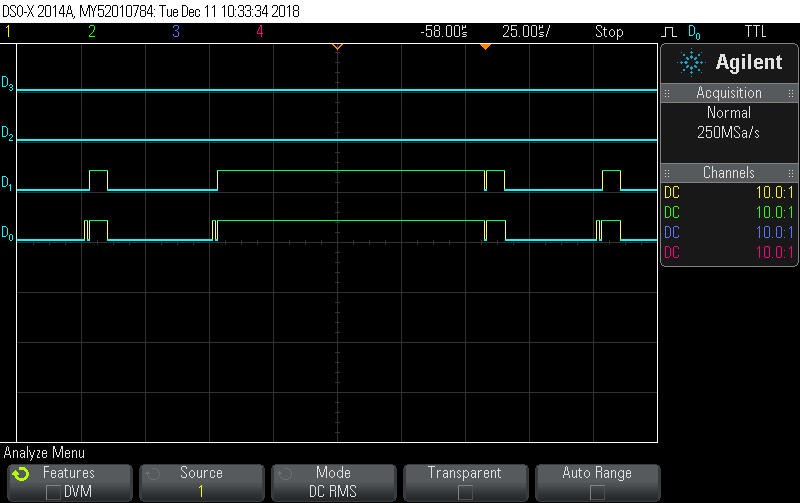

        Figure 2: Single-tasking overload on a 20 MIPS dsPIC33. The slow task (10ms) execution time extends beyond the 1ms base rate period, causing the fast task to miss its deadline. This results in timing violations and incorrect control behavior.

Consequences of overload:

• Fast control loops execute at incorrect rate
• System instability (motor oscillations, overshoot)
• Unpredictable behavior

Multi-Tasking Mode (Rate-Monotonic Scheduler)

In multi-tasking mode, tasks execute with priorities based on their execution rate. The scheduler implements the Rate-Monotonic Scheduling algorithm, where higher-rate tasks have higher priority.

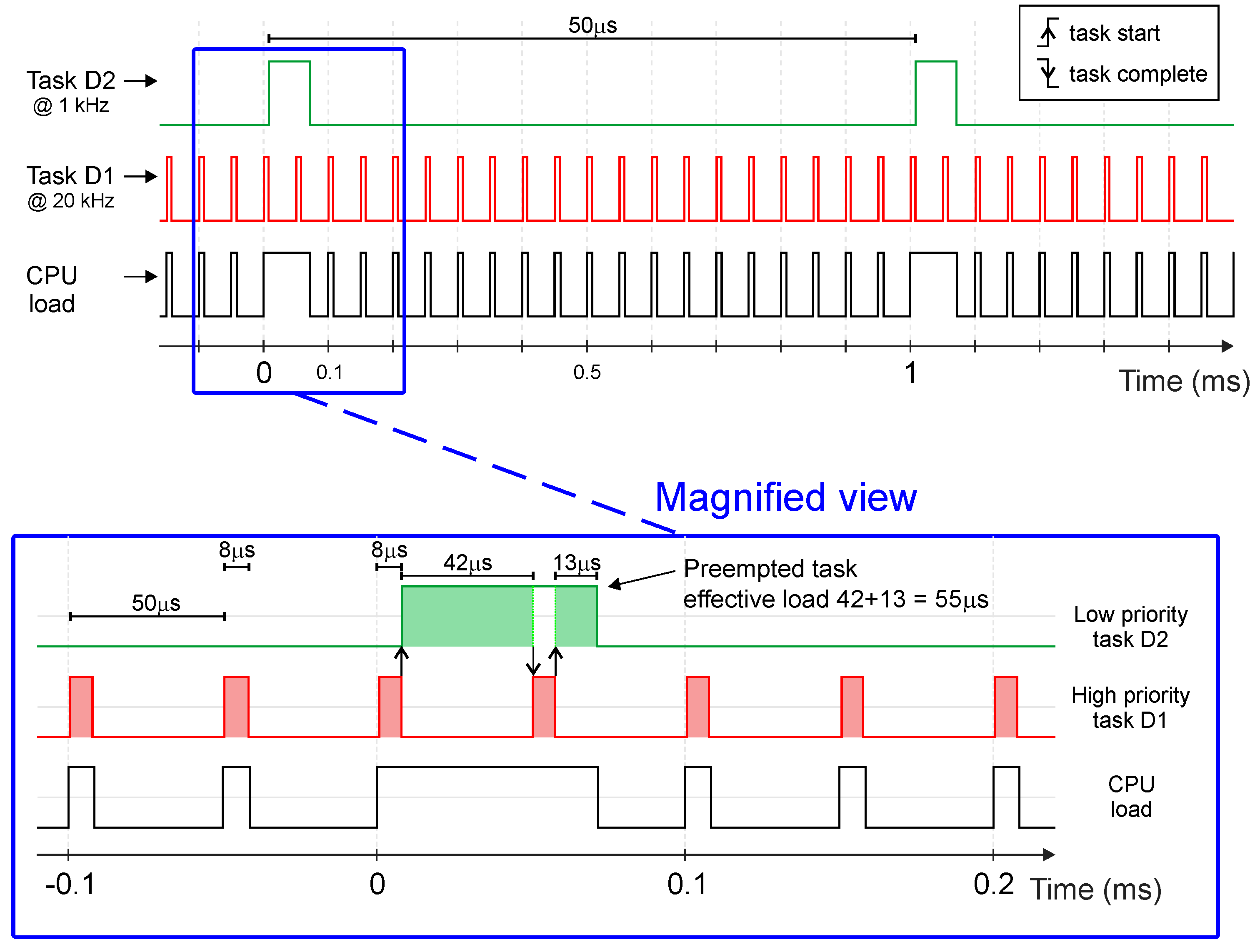

Figure 3: Rate-Monotonic Scheduler operation. Key principle: Higher rate tasks (faster execution frequency) have higher priority and can preempt slower tasks.

How it works:

• Each task is assigned a priority based on its rate (1ms > 10ms > 100ms)
• When a high-priority task needs to execute, it preempts any running low-priority task
• The preempted task resumes after the high-priority task completes
• This ensures fast critical tasks always meet their deadlines

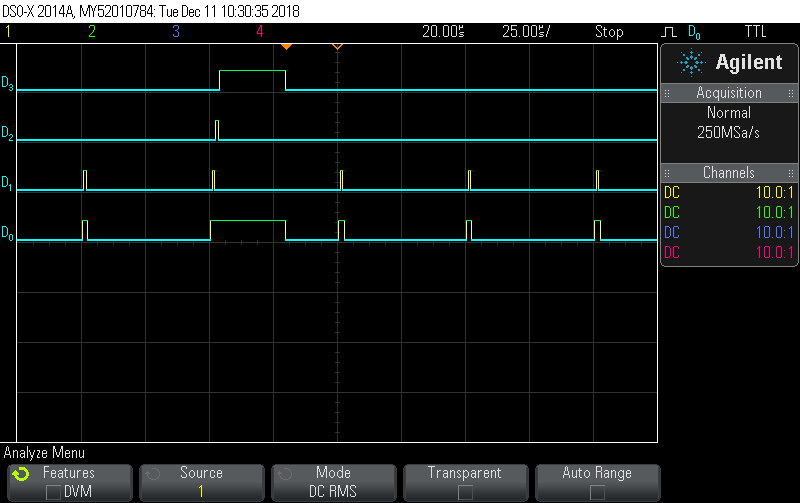

Figure 4: Multi-tasking execution on a 70 MIPS dsPIC33. The fast 1ms task (high priority) preempts the slow 10ms task (low priority) to meet its deadline. After completion, the 10ms task resumes execution.

Advantages:

• Better CPU utilization
• Fast tasks always meet deadlines even when slow tasks run long
• Prevents overload scenarios
• Optimal fixed-priority scheduling (proven by Liu & Layland, 1973)

Disadvantages:

• Slightly more complex than single-tasking
• Small overhead from context switching (typically <1%)
• Requires understanding of task priorities

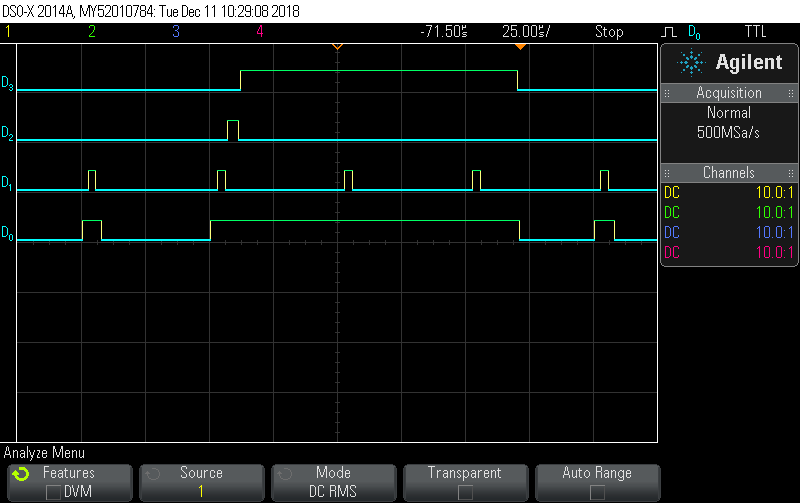

        Figure 5: Multi-tasking on a 20 MIPS dsPIC33. Even on this slower chip, the fast 1ms task executes on time by preempting the slow 10ms task. The system remains stable and all deadlines are met.

Result: Fast control loops maintain correct execution rate, ensuring system stability.

Rate-Monotonic Scheduling Theory

The Rate-Monotonic Scheduling (RMS) algorithm is a mathematically proven optimal fixed-priority scheduling algorithm for periodic tasks.

Priority Assignment Rule

Tasks are assigned priorities inversely proportional to their period:

Schedulability Analysis

The RMS algorithm guarantees that all tasks will meet their deadlines if the following condition is met:

U = Σ(Ci / Ti) ≤ n(2^(1/n) - 1)

Where:
  U  = Total CPU utilization
  Ci = Execution time of task i
  Ti = Period of task i
  n  = Number of tasks

For 3 tasks: U ≤ 0.78 (78% CPU utilization)
For ∞ tasks: U ≤ 0.69 (69% CPU utilization - conservative limit)

When to Use Single-Tasking vs Multi-Tasking

Configuration in MCHP Master Block

The scheduler mode is configured in the MCHP Master block:

Step 1: Open Master Block Configuration

1. Double-click the MCHP_Master block in your model
2. Navigate to the "Scheduler Options" tab
3. Locate the "Solver mode" parameter

Step 2: Select Scheduler Mode

``****````

Step 3: Verify Configuration

After building your model, check the generated code to verify the scheduler configuration:

/* In [ModelName].c */

/* Multi-tasking mode: Task functions with priorities */
void Task_1ms(void)   /* Priority 1 (highest) */
void Task_10ms(void)  /* Priority 2 */
void Task_100ms(void) /* Priority 3 */

/* Scheduler interrupt service routine */
void __attribute__((__interrupt__, no_auto_psv)) _T1Interrupt(void)
{
    /* Check which tasks need to execute */
    if (counter_1ms >= 1) {
        counter_1ms = 0;
        Task_1ms();  /* Execute highest priority task */
    }

    if (counter_10ms >= 10) {
        counter_10ms = 0;
        Task_10ms();  /* May be preempted by Task_1ms */
    }
}

Monitoring CPU Load and Task Execution

The MPLAB Device Blocks toolbox provides several blocks to monitor scheduler performance:

MCU Load Block

The MCU Load block measures actual CPU utilization:

• Outputs percentage of CPU time spent executing tasks
• Updates in real-time during execution
• Helps identify overload conditions before they occur

Usage:

1. Add MCHP_MCU_Load block to your model
2. Connect output to scope or data logging
3. Monitor during testing to ensure load < 80%

Tasks State Block

The Tasks State block provides detailed task execution information:

• Toggles output pin when each task executes
• Allows oscilloscope measurement of actual task timing
• Useful for verifying preemption behavior

See the timing diagrams in Figures 3-5 above - these were captured using the Tasks State block with an oscilloscope.

MCU Overload Block

The MCU Overload block detects timing violations:

• Triggers when a task exceeds its allocated time
• Can halt execution or trigger error handling
• Essential safety feature for production systems

Best Practices

1. Design for Determinism

• Use multi-tasking mode for multi-rate models
• Keep fast tasks short and predictable
• Move complex calculations to slower tasks when possible

2. Monitor CPU Load

• Target <70% CPU utilization for production systems
• Use MCU Load block during development to track usage
• Test worst-case scenarios (all tasks coinciding)

3. Task Execution Time Guidelines

4. Handle Priority Inversion

Avoid shared resources between tasks of different priorities. If necessary, use:

• Atomic operations for simple variables
• Disable interrupts briefly for critical sections
• Design tasks to be independent when possible

5. Testing Strategy

• Simulation: Verify algorithm correctness
• Single-rate test: Test all blocks at base rate first
• Multi-rate test: Enable different task rates
• Stress test: Add artificial load to verify overload handling
• Long-duration test: Run for hours to catch edge cases

Troubleshooting

Problem: Model execution is unstable

Possible causes:

• CPU overload (utilization > 100%)
• Task execution time exceeds period
• Timing violations in single-tasking mode

Solutions:

• Switch to multi-tasking mode
• Use MCU Load block to measure utilization
• Optimize slow code sections (use PIL for profiling)
• Move non-critical code to slower tasks
• Consider faster microcontroller

Problem: Fast task misses deadlines

In single-tasking mode:

• Slow task is blocking fast task execution
• Total execution time exceeds base rate period

Solution: Switch to multi-tasking mode to enable preemption

In multi-tasking mode:

• Fast task execution time is too long
• Higher-priority interrupts are blocking task

Solution: Optimize fast task or increase base rate period

Problem: Context switching overhead is high

If multi-tasking overhead is significant (rare, typically <1%):

• Reduce number of task rates
• Combine tasks with similar periods
• Consider if multi-tasking is actually needed

Related Documentation

• MCHP_Scheduler_Options Block Reference
• MCHP_Master Block Reference
• MCHP_MCU_Load Block Reference
• MCHP_MCU_Overload Block Reference
• MCHP_Tasks_State Block Reference
• External Mode & PIL Testing Guide

References

• Liu, C. L., & Layland, J. W. (1973). “Scheduling Algorithms for Multiprogramming in a Hard-Real-Time Environment”. Journal of the ACM, 20(1), 46-61.
• Buttazzo, G. C. (2011). Hard Real-Time Computing Systems: Predictable Scheduling Algorithms and Applications (3rd ed.). Springer.
